Overview

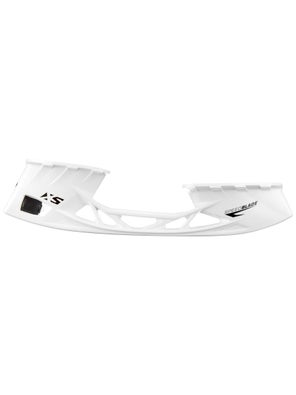

The CCM SpeedBlade XS Holder is the standard replacement holder for all CCM skates since using the XS quick-release system. Since 2019, most CCM skates have used the Regular Dial found on this holder. However, in 2023, CCM introduced a Larger Dial with different mounting hardware on select top-end models. The Larger Dial holder is easier to use but works the exact same as the Regular Dial holder.
If you're replacing a broken or damaged XS holder, we recommend purchasing the same dial size as your original holder to ensure proper fit with your skate boot's mounting holes. Both Regular and Large Dial holders use the same steel, so you can reuse your blades no matter which version your skates use.
| OVERVIEW | |
|---|---|
| Model Number | HSBXS |
| Skate Compatibility | CCM Player Skates with the XS Holder (2019+) CCM Player Skates with the SB 4.0 Holder (2013-2019) |
| Dial Compatibility | Large Dial Models (SR/INT Only): FT8 Pro, FT8, XF Pro, XF, FT6 Pro, FT6 Regular Dial Models (2019+): All other CCM skates with the XS Holder |
| Runner Compatibility | SpeedBlade XS Runners |
| Includes | (1) CCM SpeedBlade XS Holder |
Specifications
| KEY TECHNOLOGIES | |
|---|---|
| BladeLock Technology Using the quick-release dial located in the rear post, players can easily replace their broken or damaged steel on the fly. |
Videos
Sizing Chart
| GENERAL CCM XS HOLDER SIZING GUIDELINES |
|
|---|---|
| Depending on your current skate setup, identify your XS holder size in one of two ways. 1. Locate the printed or embossed measurement located on your current holder (ie. 280mm). 2. Use your current skate size including width and model year to correspond with the sizing charts below. |
| CCM XS HOLDER SIZING GUIDELINES (CCM SKATES 2019 - PRESENT) | |
|---|---|
| Holder Size | Skate Size (D, EE, Tapered, Regular, Wide) |
| 215mm | 1.0 - 1.5 |
| 221mm | 2.0 - 2.5 |
| 230mm | 3.0 - 3.5 |
| 238mm | 4.0 - 4.5 |
| 247mm | 5.0 - 5.5 |
| 255mm | 6.0 - 6.5 |
| 263mm | 7.0 - 7.5 |
| 271mm | 8.0 - 8.5 |
| 280mm | 9.0 - 9.5 |
| 287mm | 10.0 - 10.5 |
| 295mm | 11.0 - 11.5 |
| 304mm | 12.0 - 12.5 |
| 312mm | 13.0 |
| COMPATIBLE CCM SKATES (2019 - PRESENT) | ||
|---|---|---|
| Year | Family | Model |
| 2026 | Innovation Series | Vizion |
| 2026 | Tacks | XR, XR 90, XR 80, XR 70 |
| 2025 | JetSpeed | FT8 Pro, FT8, FT890, FT880, FT870, FTW |
| 2024 | Tacks | XF Pro, XF, XF90, XF80, XF70, 652 Pro Retro LE, 652 Retro LE, Classic SE, Classic |
| 2023 | JetSpeed | FT6 Pro, FT6, FT680, FT670, Xtra Plus, Xtra |
| 2022 | Tacks | AS-V Pro, AS-V, AS-580, AS-570 |
| 2021 | JetSpeed | FT4 Pro, FT4, FT485, FT475 |
| 2021 | RibCor | 100K Pro, 90K, 88K, 86K |
| 2020 | Super Tacks | AS3 Pro, AS3, 9380, 9370 |
| 2019 | JetSpeed | FT2, FT490, FT480, FT470, FT460 |
| 2019 | RibCor | 80K, 78K, 76K |
CCM SKATES WITH THE SPEEDBLADE 4.0 HOLDER
CCM Skates from 2013-2019 came with the SpeedBlade 4.0 Holder, not the SpeedBlade XS Holder. The rivet patterns match between the two but will also require compatible SpeedBlade XS Runners. We also recommend replacing both holders to maintain consistency, performance and feel.
| CCM XS HOLDER SIZING GUIDELINES (CCM SKATES 2016 - 2019) | |
|---|---|
| Holder Size | Skate Size |
| 215mm | 1.0 - 1.5 |
| 221mm | 2.0 - 2.5 |
| 230mm | 3.0 - 3.5 |
| 238mm | 4.0 - 4.5 |
| 247mm | 5.0 - 5.5 |
| 255mm | 6.0 - 6.5 |
| 263mm | 7.0 - 7.5 |
| 271mm | 8.0 - 8.5 |
| 280mm | 9.0 - 9.5 |
| 287mm | 10.0 - 10.5 |
| 295mm | 11.0 - 11.5 |
| 304mm | 12.0 - 12.5 |
| 312mm | 13.0 |
| COMPATIBLE CCM SKATES (2016 - 2019) | ||
|---|---|---|
| Year | Family | Model |
| 2019 | RibCor | 74K |
| 2018 | Tacks | Super Tacks AS1, 9090, 9080, 9070, 9060 |
| 2017 | JetSpeed | FT1, FT390, FT380, FT370, FT360 |
| 2017 | RibCor | 70K, 68K, 66K, 64K |
| 2016 | Tacks | Super Tacks, Ultra Tacks, 6092, 5092, 4092 |
| CCM XS HOLDER SIZING GUIDELINES (CCM SKATES 2013 - 2015) | |
|---|---|
| Holder Size | Skate Size |
| 215mm | 1.0 |
| 221mm | 1.5 - 2.0 |
| 230mm | 2.5 - 3.0 |
| 238mm | 3.5 - 4.0 |
| 247mm | 4.5 - 5.0 |
| 255mm | 5.5 - 6.0 |
| 263mm | 6.5 - 7.0 |
| 271mm | 7.5 - 8.0 |
| 280mm | 8.5 - 9.0 |
| 287mm | 9.5 - 10.0 |
| 295mm | 10.5 - 11.0 |
| 304mm | 11.5 - 12.0 |
| 312mm | 12.5 - 13.0 |
| COMPATIBLE CCM SKATES (2013 - 2015) |
||
|---|---|---|
| Year | Family | Model |
| 2015 | JetSpeed | JetSpeed, 300, 290, 280, 270, 260 |
| 2015 | RibCor | 50K, 48K, 46K, 44K |
| 2014 | Tacks | Tacks, 6052, 5052, 4052, 3052 |
| 2014 | RibCor | RibCor, 30K, 28K, 26K |
| 2013 | RBZ | RBZ, RBZ 100, RBZ 90, RBZ 80, RBZ 70 |
